Product Introduction

Our FRP pultruded profiles are manufactured with glass fiber as the reinforcement base, combined with a special unsaturated resin system, and formed via an automated precision pultrusion process featuring precise temperature control and high-pressure impregnation.

These pultruded composite products deliver core advantages including lightweight high strength, superior corrosion resistance, long-term anti-aging performance, and excellent dimensional stability, making them ideal for structural component applications across the construction, chemical processing, municipal engineering, and power industries.

Product Advantages

Lightweight & High Strength

Specific strength is 3x higher than steel, with tensile strength ≥350 MPa and flexural strength ≥450 MPa.

01
Corrosion & Aging Resistance

Withstands acid, alkali, salt fog, UV exposure, and extreme temperatures from -40°C to 80°C. Delivers maintenance-free outdoor service for over 20 years.

02
Insulation & Flame Retardancy

Volume resistivity ≥10¹² Ω·cm, dielectric strength ≥15 kV/mm. Customizable to UL94 V-0 flame retardant rating.

03
High precision & minimal tolerance

Cross-section deviation ≤ ±0.3mm/m, material utilization ≥ 95%. Uniform and stable specifications ensure compatibility with mass production.

04

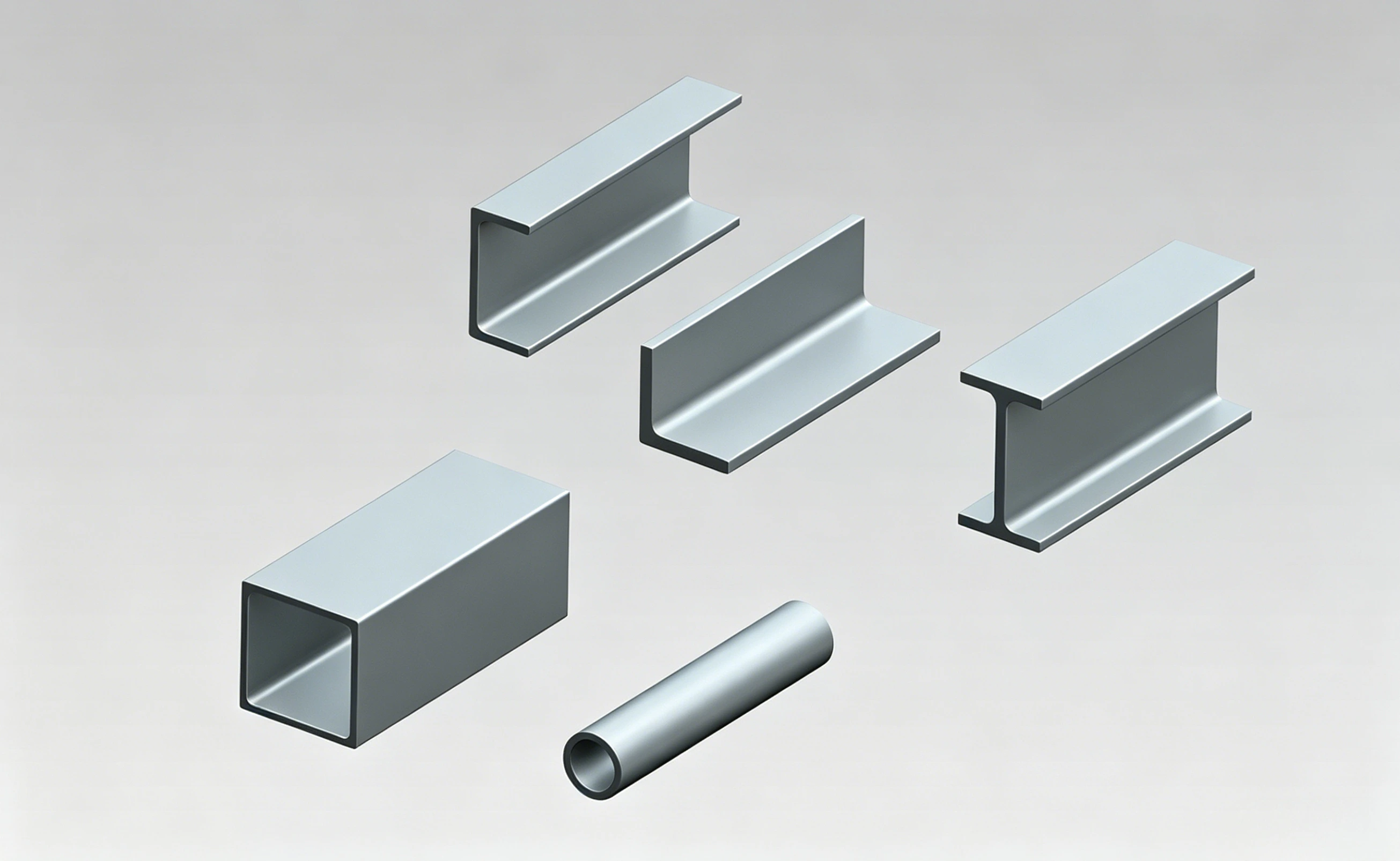

Pultruded Profile List

U-Channel

Sq. Tube

I-Beam

H-Beam

Round Tube

Angle

Y Shape

Plate

Omega TopRail

Kickplates

Anti-slip Stair Nosing

Plank/Slab

Length (mm)	Height (mm)	Thickness (mm)	Density (kg/m³)	Mold model
44.5	20	3.2	0.49	C44.5 44.5x20x3.2
51	14.3	3.2	0.45	C51 51×14.3×3.2
63.5	32	4.8	1.08	C63.5 63.5x32x4.8
102	44	6.4	2.15	C102 102x44x6.4
152	41	6.4	2.69	C152 152x41x6.4
203	55	9.5	5.31	C203A 203x55x9.5
203	76	9.5	6.06	C203B 203x76x9.5
240	90	20	14.44	C240A 240x90x20
240	85	25	17.10	C240B 240x85x25
300	85	25	19.95	C300 300x85x25

Length (mm)	Height (mm)	Thickness (mm)	Density (kg/m³)	Mold model
50	50	6.4	2.12	ST50B 50x50x6.4
60	60	4.5	1.90	ST60 60x60x4.5
64	64	6.4	2.80	ST64 64x64x6.4
76	76	6.4	3.39	ST76 76x76x6.4
100	100	9.5	6.53	ST100 100x100x9.5
100	100	6	4.29	ST100 100x100x6
100	100	8	5.59	ST100 100x100x8
100	100	10	6.84	ST100 100x100x10
100	100	5.2	3.75	ST100 100x100x5.2

3D image	Length (mm)	Height (mm)	Thickness (mm)	Density (kg/m³)	Mold model
	120	70	8	3.81	IB120 120x70x8
	203	102	9.5	7.31	IB203 203x102x9.5

3D image	Length (mm)	Height (mm)	Thickness (mm)	Density (kg/m³)	Mold model
	152	152	9.5	7.89	HB152 152x152x9.5
	203	203	9.5	10.65	HB203 203x203x9.5

Length (mm)	Height (mm)	Thickness (mm)	Density (kg/m³)	Mold model
38	32	3	0.63	RT38 38×3
50.8	40.8	5	1.37	RT50.8A 50.8×5
50.8	38	6.4	1.70	RT50.8B 50.8×6.4
40	13	13.5	2.14	RT40 40×13.5

Length (mm)	Height (mm)	Thickness (mm)	Density (kg/m³)	Mold model
30	30	3	0.32	EL30 30x30x3
50	50	5	0.90	EL51 50x50x5
40	40	4.00	0.58	EL40 40x40x4
51	51	6.4	1.16	EL51 51x51x6.4
76	76	9.5	2.57	EL76 76x76x9.5
100	100	8.00	2.92	EL100 100x100x8
102	102	9.5	3.51	EL102 102x102x9.5
203	203	9.50	7.16	EL203 203x203x9.5
170	90	20.00	9.12	EL170 170x90x20

3D image	Length (mm)	Height (mm)	Thickness (mm)	Density (kg/m³)	Mold model
	51	38	6.35	1.44	YS51 51x38x6.35

Length (mm)	Height (mm)	Thickness (mm)	Density (kg/m³)	Mold model
任意	80	3	0.56	FS80 80×3
	150	6	1.71	FS150 150×6
	160	6	1.82	FS160 160×6
	160	5	1.52	FS160 160×5
	170	19	6.14	FS170 170×19
	150	5	1.43	FS150 150×5
	260	9.5	4.69	FS260 260×9.5
	260	12.7	6.27	FS260 260×12.7

Length (mm)	Height (mm)	Thickness (mm)	Density (kg/m³)	Mold model
60	76	4	1.39	OT60 60x76x4
70	63.5	5	1.51	OT70 70×63.5
106	128	8	5.21	OT106 106x128x8

3D image	Length (mm)	Height (mm)	Thickness (mm)	Density (kg/m³)	Mold model
	100	12	3.2	0.91	M100 100×3.2
	150	14	3	1.47	M150 150×3

Length (mm)	Height (mm)	Thickness (mm)	Density (kg/m³)	Mold model
70	30	3	0.55	SN70 70x30x3
70	30	4	0.73	SN70 70x30x4
152.4	25.4	4	1.32	SN152.4 152.4×25.4×4
345	55	4	3.01	SN345 345x55x4

3D image	Length (mm)	Height (mm)	Thickness (mm)	Density (kg/m³)	Mold model
	305	54	6.00	5.40	P/S305 305x54x6
	500	40	4.50	9.00	P/S500 500x40x4.5

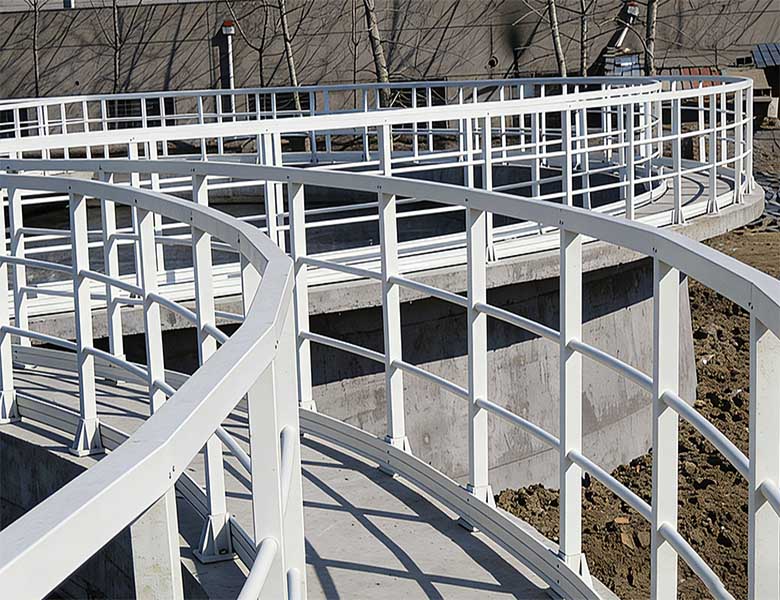

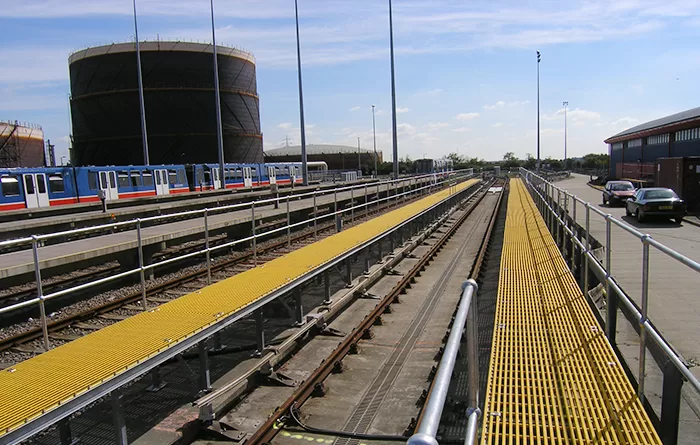

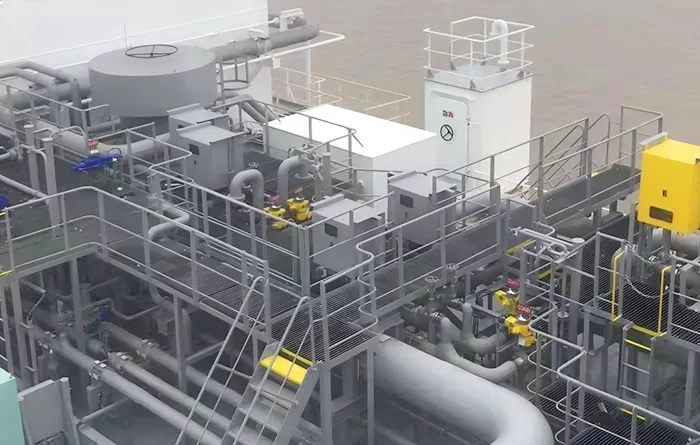

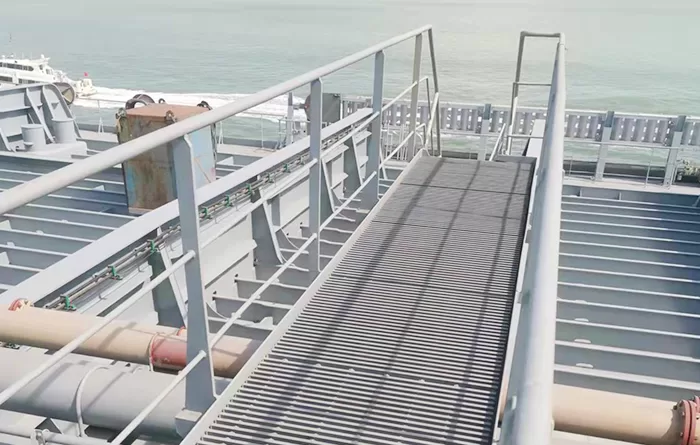

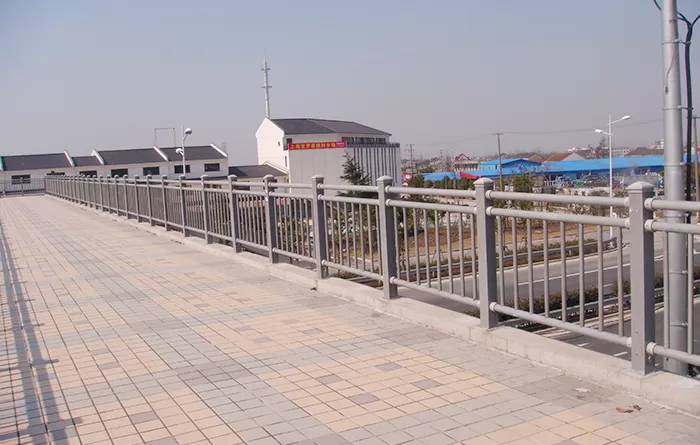

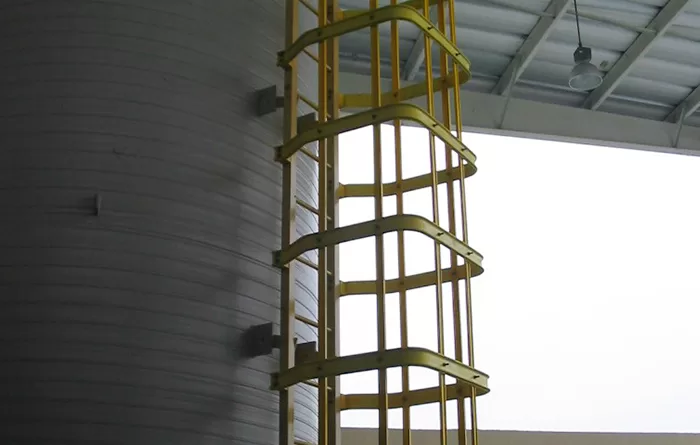

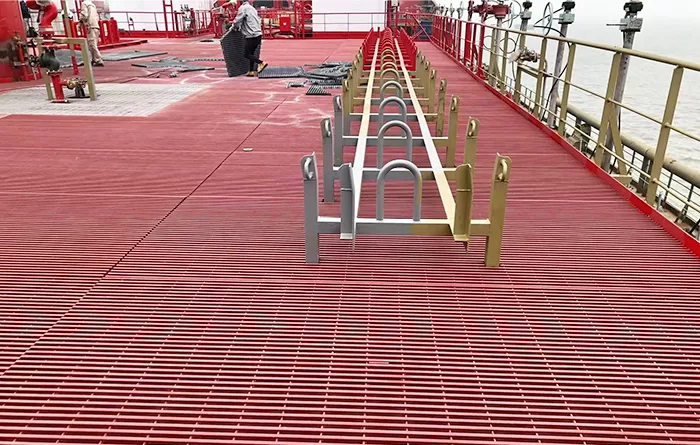

Product Application
