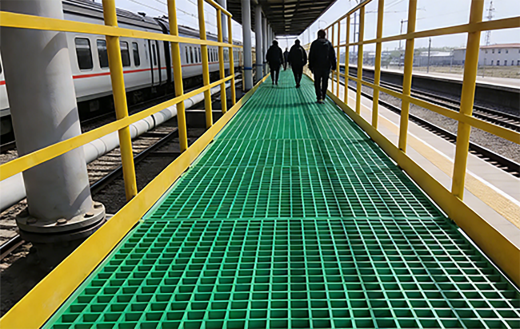

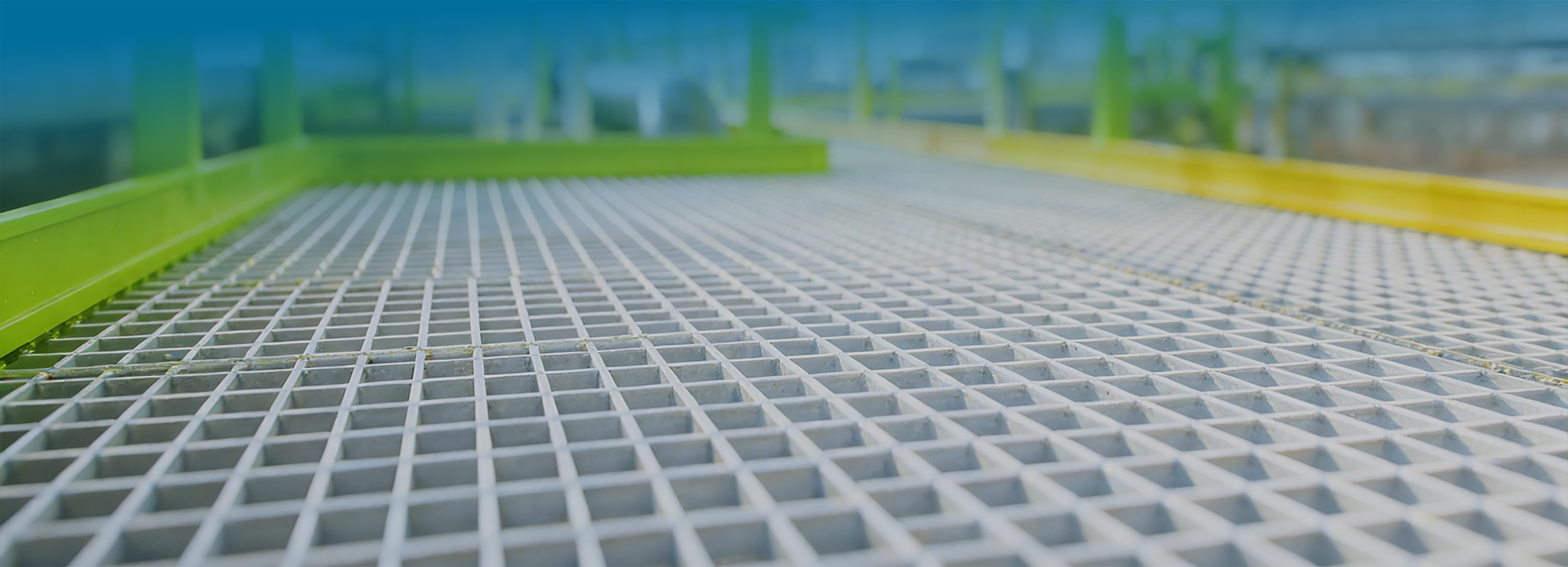

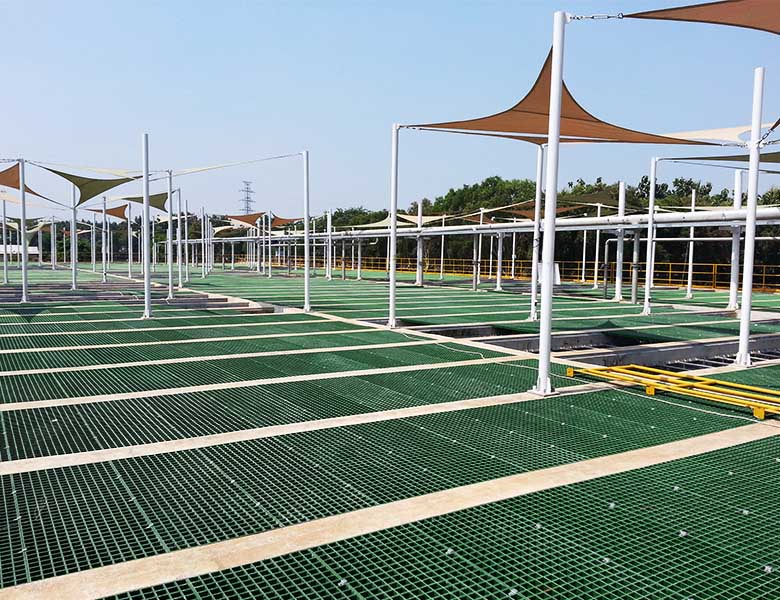

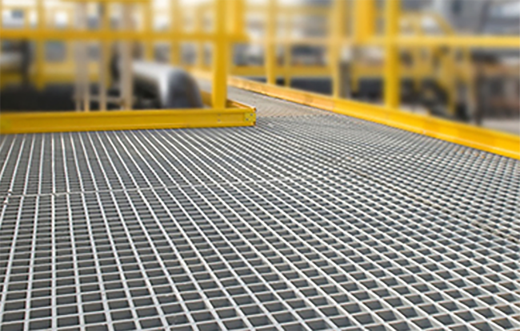

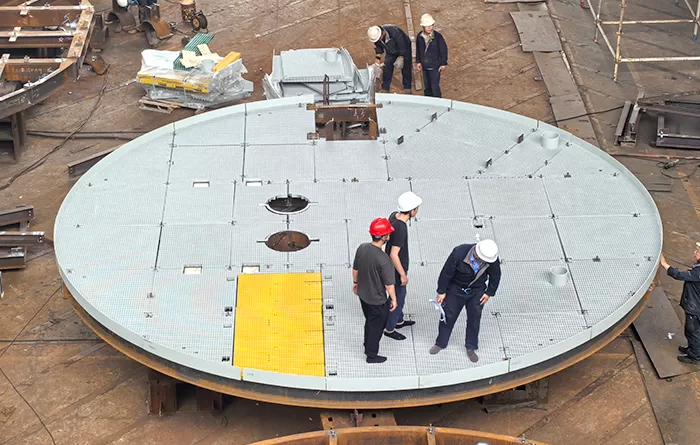

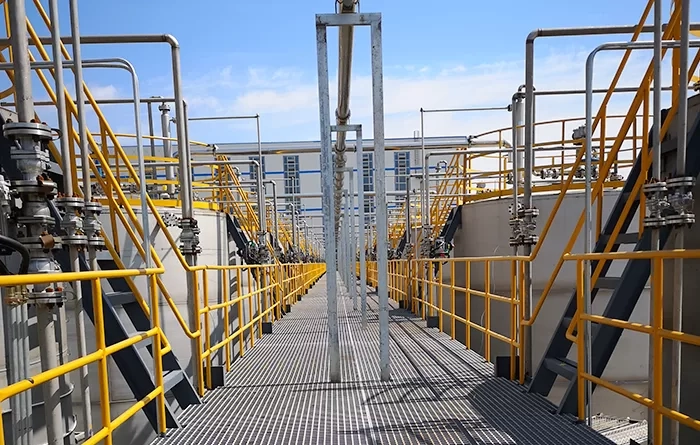

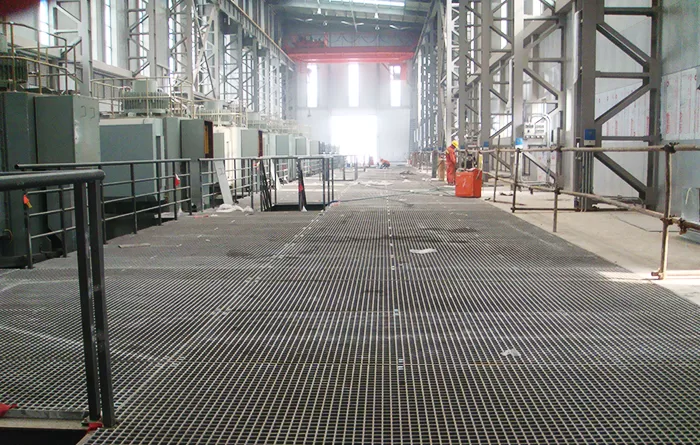

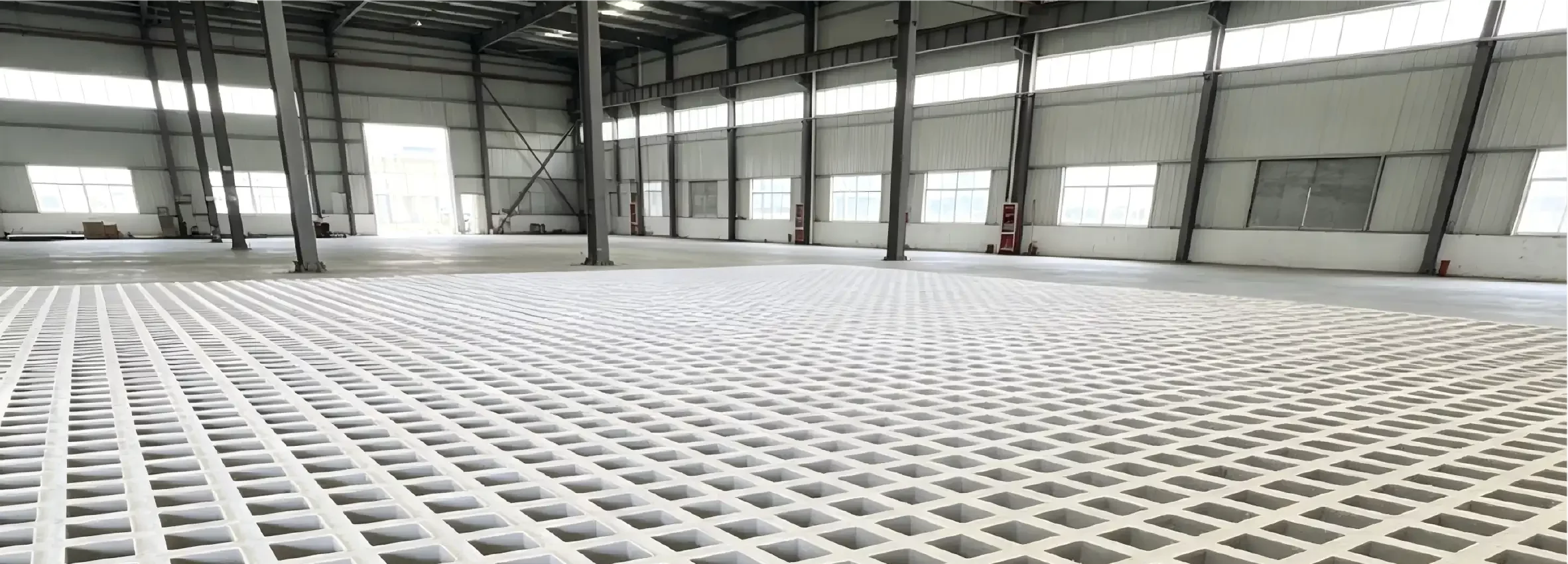

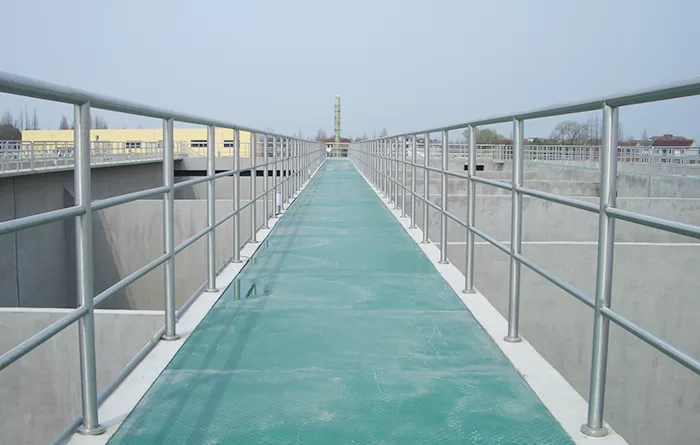

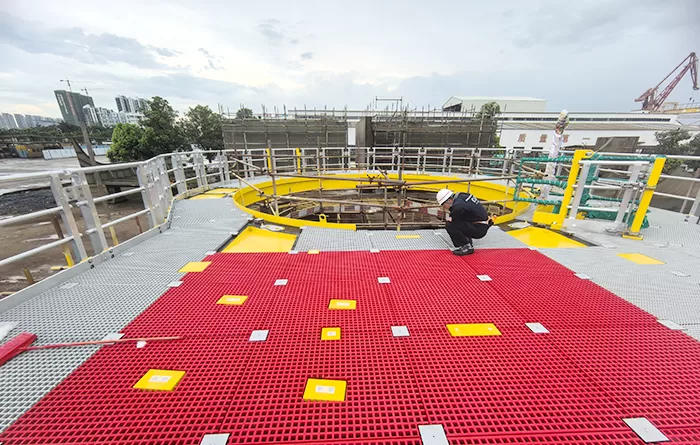

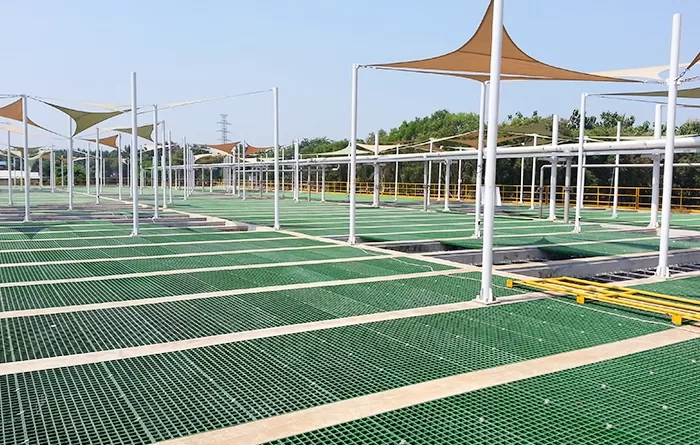

Manufactured from fiberglass yarn reinforced with unsaturated resin and thermoset in molds. Its grid structure delivers high structural strength and excellent drainage, widely used in chemical platforms, municipal walkways, sewage treatment and PV maintenance scenarios.
-
Lightweight & high load strength
It features only 1/4 the density of steel, with flexural strength ≥280MPa. It supports pedestrian and small equipment loads while reducing overall structural weight.
01
-
Stable in extremes, 20-year maintenance-free
Resistant to acid, alkali and salt spray. It maintains stable performance from -40°C to 80°C, supports over 20 years of outdoor service with no anti-corrosion maintenance required.
02
-
Slip-resistant & insulating
Nubbed anti-slip surface with friction coefficient ≥0.8; insulated and flame retardant, ideal for power, chemical and special industrial environments.
03
-
Easy installation & Versatile use
Custom cuttable & spliceable, high open area for efficient drainage & ventilation; suitable for damp and dusty working conditions.
04

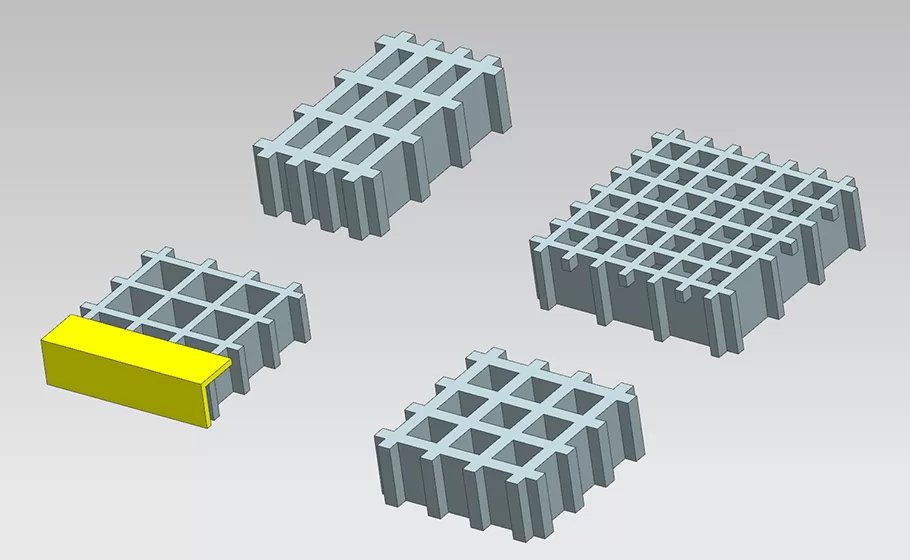

| 3D image | Length (mm) | Mesh Size(mm) |
Rib Thickness (Top/Bottom) |
|---|---|---|---|
 |
12 | 38×38 | 7/5 |
| 25 | |||
| 30 | |||
| 38 | |||
| 50 | |||
| 25 | 40×40 | 7/5 | |
| 40 | |||
| 50 | |||
| 12 | 50×50 | 7/5 | |
| 40 | |||
| 50 | |||
| 50.8 | 50.8×50.8 | 7/5 | |
| 50 | 50×50 | 7.5/5 | |
 |
50 | 38×38 | 9/7 |
| 50 | 11/9 | ||
 |
22 | 13×13/40×40 | 7/5 |
| 30 | |||
| 40 | |||
 |
14 | 40×40（20×20） | 7/5 |
| 22 | |||
| 25 | |||
| 30 | |||
| 40 | |||
| 30 | 38×38（19×19） | 7/5 | |
| 38 | |||
| 50 | 50.8×50.8(25.4×25.4) | 7.5/5 | |
 |
50.8 | 25.4×50.8 | 12.5/9 |
| 50 | 25×50 | 12/9 | |
| 25 | 25×100 | 7/5 | |
| 50 | 50.8×25.4 | 11/9 | |
| 50 | 25.4×50.8 | 11/9 |
